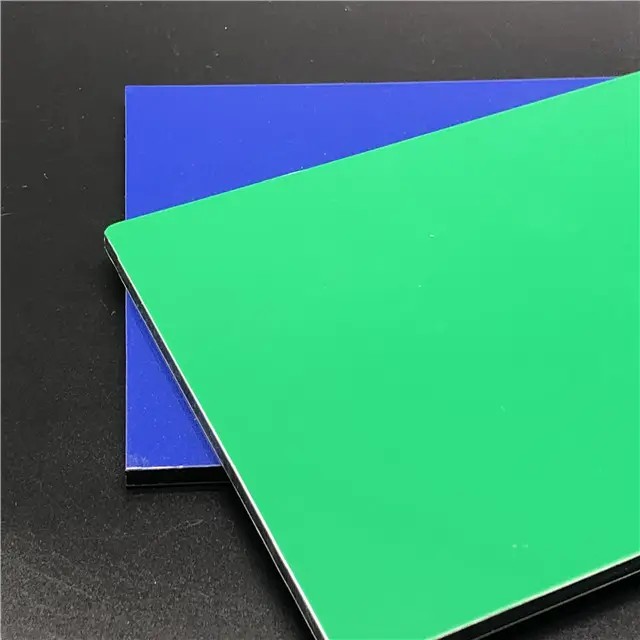

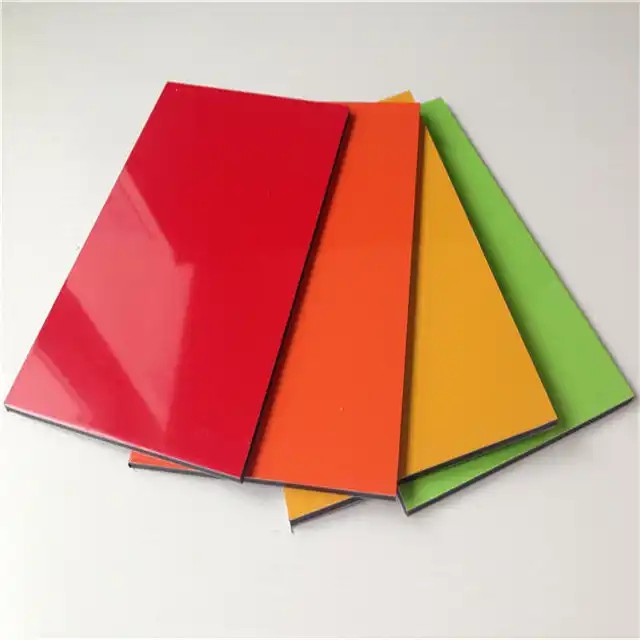

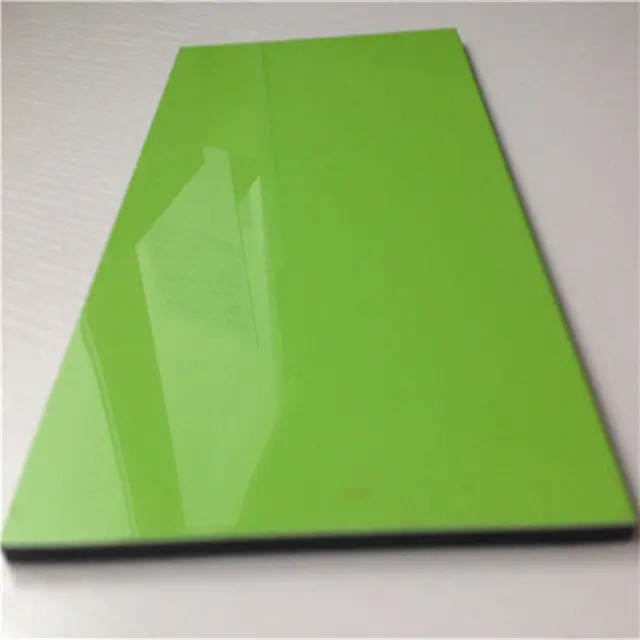

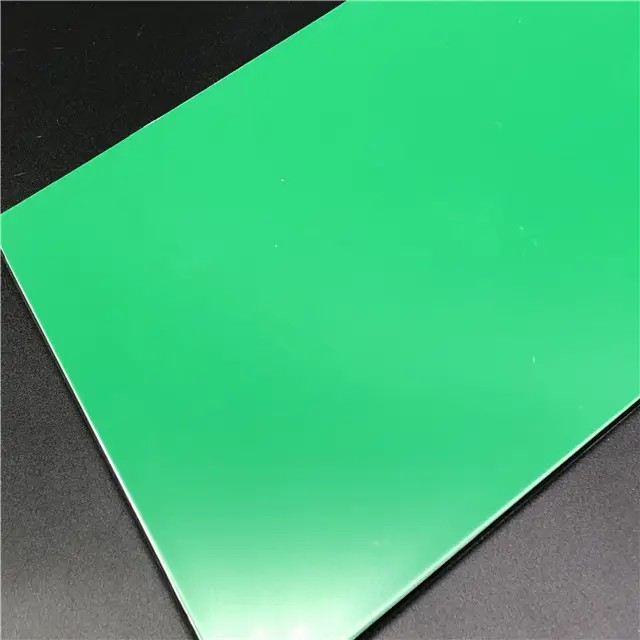

HIGH GLOSS ALUMINUM COMPOSITE PANEL

Origin: China

MOQ: 300 Square meters.

Price: To be negotiated.

Color: 60+ kinds,our color card or Sample matching or RAL,Pantone etc.

Width: 1220mm/1250mm/1500mm/1550mm/1575mm (Max-width:2000mm)

length: 2440mm/3050mm/4045mm/5800mm(Max-length:11500mm)

Aluminum Thickness: 0.05mm-0.50mm(According to the situation)

Email:sales@cnaludream.com WhatsApp:+86-13598747266
Description
Parameters
Color Option
Application



Product Features

1.ECONOMY

With the use of quality coating, aluminum-plastic panels are dispensed with longtime maintenance, thus having saved the maintenance expenditures of modem high-rise constrictions. Due to the serious pollution in cities in our country, they may need to be maintained and cleaned several years later. Being easily cleanable, they can be cleaned by neutral cleaning agent and clean water, and come out to be fairly new after cleaned.

2.DURABILITY

Fluorocarbon coated aluminum plastic composite panels are featured by high durability,good resistance against weather,high temperature,wear and pollution etc.

3.FLATNESS

Aluminum plastic composite panels are given smooth surface to meet the top-grade enjoyment of modem constructions.

4.LIGHT WEIGHT

Aluminum plastic composite panels are composite of aluminum and plastics,which is lighter than other decorating materials,thereby to facilitate the installation work and shorten the construction period.

5.EASYINSTALLATION

Aluminum plastic composite panels can be easily cut,grooved,and bent into arc or right-angled shapes to meet the requirements of decoration.

6.NON INFLAMMABLE

The non inflammable external aluminum sheets offer protection to polyethylene core material,and cut off heat conduction in the initial stages of combustion,with flame resistance up to international standard.

7.DESIGN PERFORMANCE

If requested by customers,aluminum-plastic panels can be made to different colors.

8.ENVIRONMENTAL- FRIENDIY

No changes in surface coating,no pollution to the environment


Consult more parameters!

Specification


Width:1220mm/1250mm/1500mm/1550mm/1575mm (Max-width:2000mm)
Length:2440mm/3050mm/4045mm/5800mm(Max-length:11500mm)
Panel thickness:2mm/3mm/4mm/5mm/6mm.
Alu sheet thickness:0.05-0.50mm
Max thickness:15mm.
Coating kind:PE,PVDF,GLOSSYPE,NANOPVDF,NANOPE,FEVE,GLOSSY FEVE,BRUSHED/MIRROR/MARBLE/WOODEN
Color:60+ kinds,our color card or Sample matching or RAL,Pantone etc.
Middle CoreLDPE/B2,B1Fireproof/A2 FR
Other sizes/colors:As per customer's option can available.



Technical Properties:


Thickness[mm]2mm3mm4mm5mm6mm
Aluminum skin[kg/m2]0.20
0.50
Weight[cm3/m]
2.604.04.686.557.60
Section modulus W[kNcm2/m]0.911.251.752.102.75
Rigidity EJ[kNcm2/ m]8801250240032505900
Width (standard size)    [mm]1220/1250/1500



Mechanical Properties of Aluminum Cover Sheets:


AlloyA1100/A3003
Modulus of elasticity7,000 kg / mm2
Tensile strength of cover sheets[N/mm2]Rm >=130
Proofstress [N/mm2]Rp0.2>=90
ElongationA50>=5%
Linear expansion2.4mm/m at 100°C temperature
Yield strength15.5 kg / mm2



Physical Properties:

Bending strength119 Mpa
Bending modulus ofelasticity3.48 x 104
Penetrating resistance9.9KN
Shearing strength32.8Mpa
180° peel strength11.4N/ mm
Thermal expansion coefficient1.6X 10-5
Temperature of thermal112°C
Temperature resistance-40°C to +80°C




Consult more parameters!

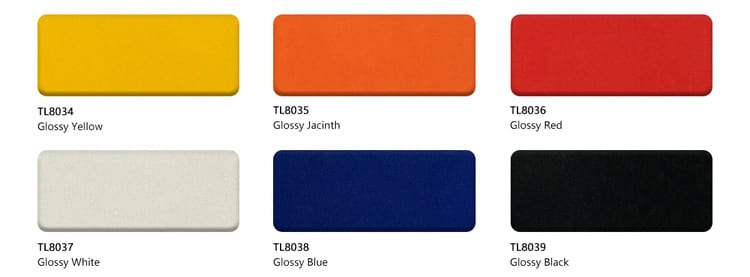

Ordinary colors : more than 60 kinds of Solid colors and Metallic color reference.

Customized colors : PANTONE and RAL colors available


Consult more parameters!

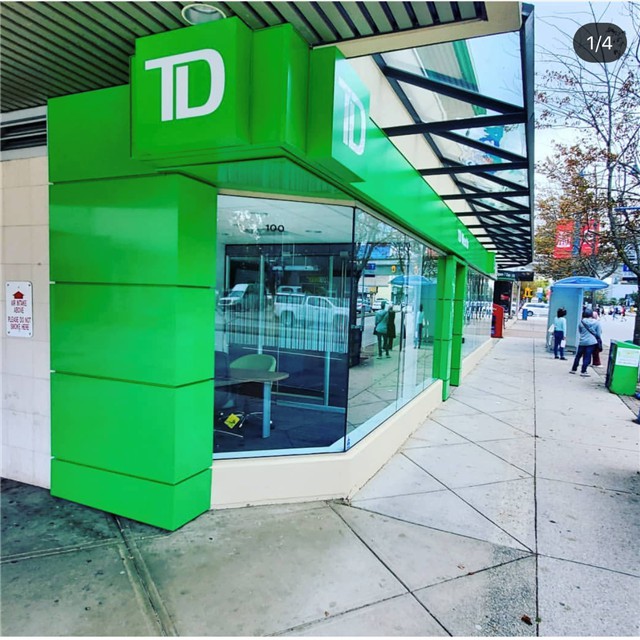

1.Constructional exterior curtain walls, Wall Panel are widely used in exhibition, stores, offices, banks, hotels, restaurants and apartments;
2. Decorative renovation for storey-added old buildings, facades, roofing;
3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens, balconies and subway;
4 .Advertisement board, display platforms, billboards and signboards;
5. Wallboard and ceilings for tunnels;
6 .Raw materials in industrial purpose;
7 .Material used for vehicle bodies, yachts and boat
